During my third year of undergrad I was responsible for putting together an IWD system for MRacing's second electric vehicle. After quite a bit of deliberation on how the system should look, myself and Chris Symonds put together this drive unit, comprised of a 35 kW electric motor coupled to a compound epicyclic gearbox that I had designed.
In total, each drive unit produced around 240 nm [177 lb ft] of peak torque at 1,300 RPM, resulting in a 130 kW [174 hp] car with a 125 kmh [78 mph] top speed. It ended up being, mechanically, very reliable and the team continued to use this design for three years.
Render of assembly explosion

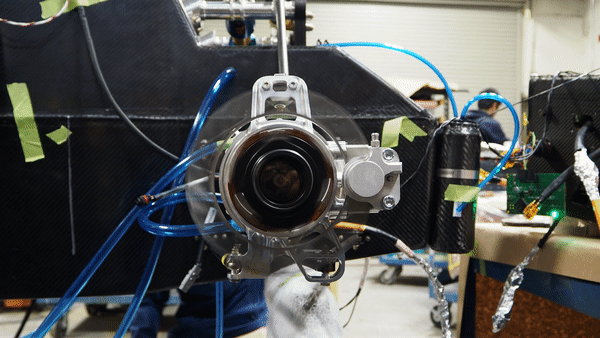

First spins on the stand

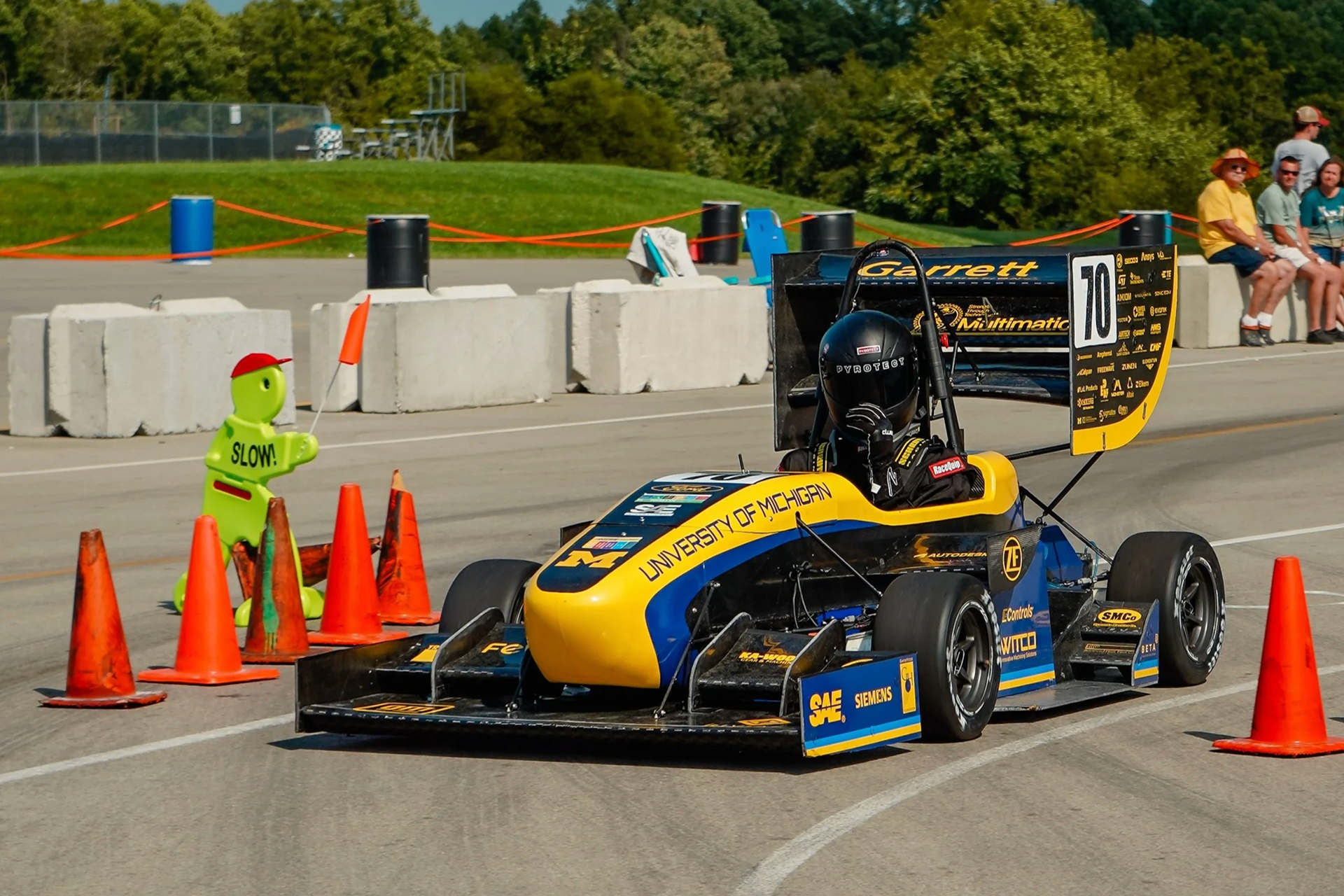

MR23 competing at Pittsburgh Shootout
MR23 in testing at NC53, University of Michgian
MR24 in testing at NC53, University of Michigan

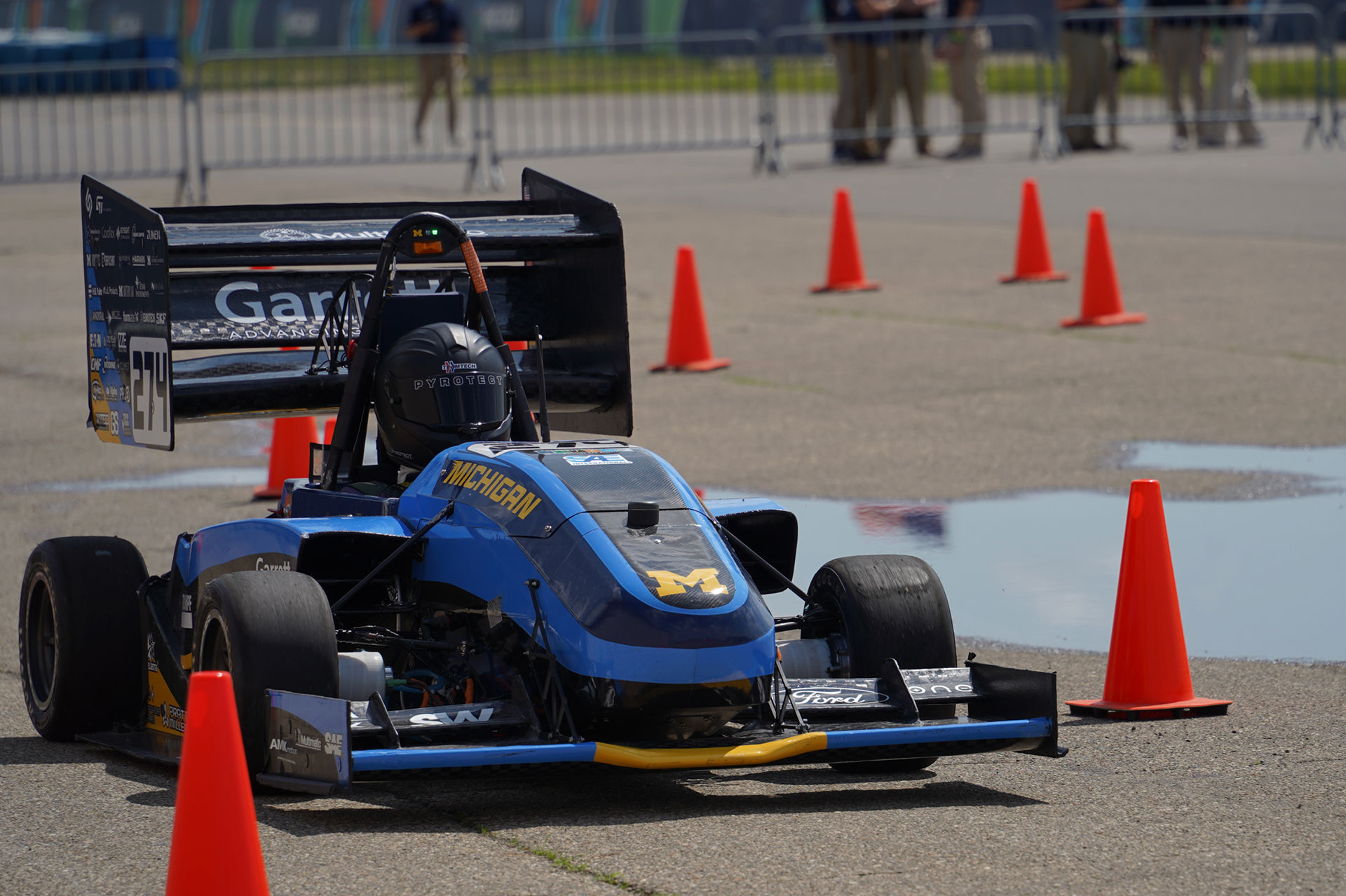

MR25 competing at Michigan International Speedway
